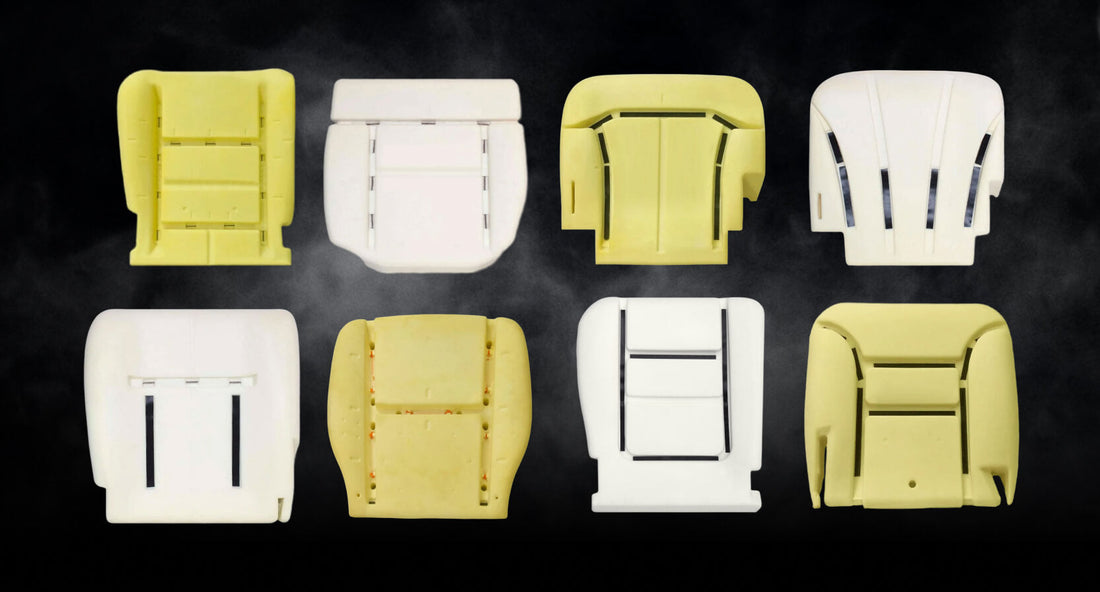

Types of Foam Used in Automotive Seat Cushions

Have you ever sat in a car seat that felt flat, hard, or just plain uncomfortable? Most of the time, the foam inside the seat is to blame. The types of foam used in automotive seat cushions are carefully chosen. They are not just soft filler. They are engineered materials that decide how safe, comfortable, and long-lasting your seat will be.

Polyurethane foam holds more than 90% of the global car seat market. But many other foam types play key roles too. From memory foam in luxury cars to expanded polypropylene in child seats, each material has a job to do.

This guide covers every foam type, explains the key specs you need to know, and helps you make a smart choice when it is time to replace or upgrade your seats.

The 8 Types of Foam Used in Automotive Seat Cushions

Not all foam is the same. Each type has a specific purpose, a set of strengths, and clear limits. Here is a complete breakdown.

1. Flexible Polyurethane Foam: The Industry Standard

Flexible polyurethane foam is the most widely used material in car seats today. According to Euromoulders and Covestro, it holds over 90% of the global automotive seating market. General Motors first used it in 1958. By the 1970s, cold-cure foam had replaced older methods and become the industry standard.

How it is made: A chemical reaction between polyol and isocyanate (either MDI or TDI) creates the foam. The mixture is poured into cast aluminum molds, then cured. After curing, the foam is crushed to open its cells and develop resilience.

Key specs:

• Foam density: 35 to 60 kg per cubic meter (2.2 to 3.7 lb per cubic foot)

• ILD at 25%: roughly 25 to 45 in US terms (180 to 350 N per 314 cm squared per JIS K-6400)

• Recovery time: less than one second

Pros:

• Cost-effective

• Moldable into complex ergonomic shapes

• Customizable density and firmness

• Good heat tolerance

• Widely available from suppliers like BASF, Dow Chemical, and Covestro

Cons:

• Low-quality versions are prone to compression set over time

• May release volatile organic compounds (VOCs) if low-grade

Typical uses: Driver and passenger seat bases, seat backs, economy cars, fleet vehicles, and commercial vehicles.

Two common variants:

• PUR Polyether: Lower odor and lower VOC emission rates. Preferred for enclosed cabin use.

• PUR Polyester: Better thermoformability and easier to process. Slightly firmer feel.

2. High-Resilience (HR) Foam: Premium Polyurethane

High-resilience foam, often called HR foam, is a step above standard cold-cure polyurethane. It has a more open-cell structure and a special chemical formula that gives it superior elasticity.

Key specs:

• Density: at least 45 kg per cubic meter

• Ball rebound resilience: above 60% (standard PU foam sits between 40% and 55%)

• Better long-term compression set resistance than standard PU

Pros:

• More durable than standard foam

• Better breathability and lower heat buildup

• Higher support factor for improved body support

• Preferred by Adient, Lear Corporation, and Faurecia (Forvia) for higher-grade seats

Cons:

• Higher cost than standard cold-cure

• Slightly heavier

Typical uses: Premium economy and mid-range vehicles, long-haul commercial driver seats, high-use fleet vehicles. According to Distinctive Industries, HR foam has grown rapidly in popularity because it holds its shape far longer under heavy daily use.

3. Memory Foam (Viscoelastic Polyurethane): Pressure-Contouring Comfort

Memory foam is technically a viscoelastic foam. It was first developed by NASA for aircraft seat cushions. Today it is used in luxury vehicles and aftermarket seat upgrades.

How it works: Memory foam responds to both body heat and pressure. It slowly molds to your body shape, then slowly bounces back when you stand up. This slow recovery makes it excellent at reducing pressure points.

Key specs:

• Density: 50 to 80 kg per cubic meter (high density contributes to heat retention)

• Slow recovery time: 5 to 10 seconds or more

• Temperature-sensitive: softens in heat, firms in cold

Pros:

• Excellent pressure point relief and postural support

• Conforms to individual body shape

• Great for drivers with back pain

• Increasingly used in BMW Group and Mercedes-Benz luxury seats

Cons:

• Retains body heat, which can be uncomfortable in warm climates

• Too slow-recovering to serve as the main structural foam in a seat

• Consumer-grade memory foam (like mattress toppers) does NOT meet the FMVSS 302 fire standard. Never use it as an automotive replacement.

Typical uses: Luxury vehicle seats, aftermarket lumbar support inserts, seat toppers, and cushion pads.

4. Viscoelastic Foam (Non-Memory Variant): Adaptive Performance

Viscoelastic foam works much like memory foam, but with a slightly faster recovery time and a different temperature response. It adapts to pressure and contours to the body without the extreme slowness of classic memory foam.

Key specs:

• Medium recovery time (faster than memory foam, slower than standard PU)

• Adapts well to changing temperatures

• Strong impact absorption across a wider temperature range

Pros:

• Excellent at absorbing impacts and reducing driver fatigue

• Performs better than memory foam in cold weather

• Good for seats that need dynamic support during cornering

Typical uses: Sports cars and high-performance vehicles where a driver needs firm, body-hugging support while cornering. Also used in some ergonomic car seat designs for commercial vehicle drivers.

5. Latex Foam: The Sustainable Legacy Material

Latex foam is one of the oldest automotive seat materials. London buses used it as early as 1932. It was the dominant seat technology until the 1960s when polyurethane foam took over. According to Euromoulders, PU replaced latex for two main reasons: lower production cost and more consistent manufacturing quality.

Types: Natural rubber (NR) latex and synthetic (SBR) latex. Modern versions sometimes use coconut fibers bonded with a latex mixture.

Key specs:

• Highly elastic with fast rebound

• Naturally antimicrobial and hypoallergenic

• Heavier than polyurethane foam

Pros:

• Excellent breathability

• No VOC off-gassing

• Naturally resistant to dust mites and mold

• A sustainable automotive seat foam option for eco-conscious buyers

Cons:

• Higher cost than PU foam

• Heavier, which works against vehicle weight reduction goals

• Limited OEM use today

Typical uses: Higher-end vehicles with a sustainability focus, restoration of pre-1960s classic cars where historical accuracy matters. Legendary Auto Interiors and similar classic car specialists stock latex-based foam for authentic restorations.

6. Expanded Polypropylene (EPP) Foam: Energy-Absorbing Safety Foam

Expanded polypropylene, or EPP, is a bead-based foam known for absorbing and surviving repeated high-impact forces. Unlike most foams, EPP can be crushed multiple times and still recover its shape.

Key specs:

• Full shape recovery after impact (unlike EPS)

• Lightweight with good thermal insulation

• High energy absorption per unit of weight

Pros:

• Superior crash energy absorption for child car seat safety

• Recovers shape after multiple impacts

• Lightweight

Cons:

• Not suitable as a cushioning material on its own

• Used as a structural or safety layer, not a comfort layer

Typical uses: Child car seat shells and structural layers, headrest energy absorbers, knee bolsters, and seat structure reinforcement in adult seats.

7. Expanded Polystyrene (EPS) Foam: Rigid One-Time Energy Absorption

Expanded polystyrene, commonly known as Styrofoam, is the familiar white bead foam used in packaging and bike helmets. In automotive applications, it is used strictly for one-time energy absorption in safety-critical components.

Key specs:

• Crushes on a single high-impact event and does not recover

• Very lightweight

• Low flexibility

Important distinction: EPS is a single-use crash foam. EPP recovers after impact. Both are used in child seat safety systems, but neither is used in adult seat cushions for everyday comfort.

Typical uses: Child car seat impact shells, helmet liners, and structural impact zones. The foam used in child car seat safety systems, including EPS and EPP, should never be replaced by the consumer. Always follow manufacturer guidance or replace the entire seat unit.

8. Gel Foam and Hybrid Foam: Advanced Comfort Engineering

Gel foam is polyurethane foam infused with a supportive gel material. It is designed to relieve pressure on the coccyx and lower back while offering a cooling effect.

Hybrid foam combines two or more layers of different foam types. A common example is a 40mm HR foam base for structural support topped with 20mm open-cell memory foam for surface comfort. This layered design is increasingly used in premium aftermarket seats and OEM luxury vehicles.

Pros:

• Combines structural support with pressure relief

• Better temperature regulation than memory foam alone

• Ideal for drivers with chronic back pain or those on long drives

Cons:

• Higher cost than single-material seats

• More complex to replace

• Must verify that all layers carry automotive-grade foam certification

Typical uses: Premium aftermarket upgrades, OEM luxury and flagship vehicles, and specialist ergonomic seats for commercial drivers.

Foam Type Comparison at a Glance

Which Foam Type Does Your Vehicle Use?

The type of automotive seat cushion foam in your car depends on your vehicle's price class and purpose.

The Future of Automotive Seat Foam: Sustainability, Weight, and Smart Materials

The next generation of automotive seat cushion foam is being shaped by three big forces: sustainability, weight reduction, and new technology.

Bio-Based Polyurethane Foam

Companies like Covestro and BASF Polyurethanes now offer bio-based polyurethane foam made with plant-derived polyols derived from sources such as soy and castor oil. Some products carry a 50% renewable feedstock share. The mechanical performance matches conventional PU foam, but the CO2 footprint is significantly lower. This is a true sustainable automotive seat foam option that is already available at an industrial scale.

Recycled Content Foam

Several OEMs are now incorporating up to 20% post-consumer recycled polyurethane content into their seat foam. This supports manufacturers' circular economy goals and aligns with stricter environmental regulations in Europe and North America.

VOC Reduction

Volatile organic compounds (VOCs) from seat foam have been a focus for the industry for more than a decade. The results have been significant. Modern automotive foam has far lower off-gassing rates than foam from 20 years ago. This means better cabin air quality, especially in sealed, modern vehicles.

Weight Reduction

Current OEM car seat foam uses about 10-15 kg per vehicle. Reducing that weight directly lowers CO2 emissions over the vehicle's lifetime. Lightweight HR foam formulations and foam-spring hybrid designs are helping reduce this number without sacrificing comfort or support.

Smart and Adaptive Foam

Research is ongoing into pressure-responsive and thermally adaptive foam composites. These materials could adjust their firmness based on driver weight, posture, or temperature. This is especially relevant for future autonomous vehicles, where passengers will sit for long periods without the physical engagement of driving.

Other Foam Materials Worth Knowing

When you research automotive seat cushion foam, you will come across a few more terms. Here is a quick reference so nothing catches you off guard.

Slabstock Foam vs. Molded Foam

Slabstock foam is made in large continuous blocks that are later cut and shaped. General Motors used slabstock foam toppers in 1958. The problem was that cutting and gluing caused material waste and inconsistent results. By 1961, the first molded foam production line came online, using cast aluminum molds. Molded foam is poured directly into a mold and takes its final shape during curing. This gives OEM manufacturers precise control over ergonomics and foam density. Most modern car seats use molded polyurethane foam rather than slabstock.

High-Density Foam vs. Standard Foam

High-density foam is a term you will see in many product listings. It simply means the foam has more material packed into each cubic foot. A true high-density foam for car seats starts at 2.5 lb per cubic foot. Anything labeled "high-density" below that number is a marketing claim, not a technical fact. Always verify the actual figure.

NBR Rubber Foam and EPDM Foam

NBR (nitrile-butadiene rubber) foam is used in some specialty automotive seats. It offers excellent shock absorption and pressure distribution in situations requiring oil or chemical resistance. EPDM foam (ethylene-propylene-diene monomer foam) is another rubber-based option used in some seat edge seals and door panel padding. Neither NBR nor EPDM is common in main seat cushion cores, but both appear in specialized commercial and industrial vehicle seating.

Polyethylene Foam

Polyethylene foam is a closed-cell, lightweight foam used in some automotive seats for its structural integrity. It is firmer and more moisture-resistant than open-cell PU foam. It is most often found in structural seat components and some armrest padding layers rather than in the main cushion.

Breathable Foam and Antimicrobial Foam

Breathable foam car seat designs use open-cell structures that allow air and moisture to pass through freely. This is especially important in seats with ventilated seat systems. Some manufacturers add antimicrobial treatments to the foam surface to resist mold and bacterial growth. Antimicrobial foam car seat materials are available in both medium and high-density forms. They are a good choice for vehicles used in hot, humid climates.

Foam Resilience and the Indentation Modulus

Foam resilience is measured by the ball rebound test. A steel ball is dropped onto the foam, and the rebound height is recorded as a percentage. High resilience means the foam returns energy quickly. HR foam exceeds 60% ball rebound. Standard cold-cure PU typically ranges from 40% to 55%.

The indentation modulus is a more advanced spec that measures how the foam's firmness changes within the 20%-40% ILD compression range. A steep slope means the foam goes from soft to firm quickly. A shallow slope means it feels consistently firm throughout the range. OEM engineers use the indentation modulus alongside ILD to fine-tune how a seat feels when you first sit down versus when you are fully settled.

Seat Cushion Pan and Headrest Foam

The seat cushion pan is the structural base of the seat bottom. The foam on top of it must be stiff enough to maintain its shape but soft enough to avoid pressure points. Headrest foam, by contrast, is typically lower-density and softer, since it only needs to provide gentle support for the neck and back of the head. Many OEM headrests use a separate foam spec from the main seat to optimize comfort for that zone.

Frequently Asked Questions About Automotive Seat Foam

What type of foam is most commonly used in car seats?

Flexible polyurethane foam, specifically cold-cure molded PU, is used in over 90% of automotive seat cushions worldwide. It offers the best balance of comfort, moldability, and cost-effectiveness for mass production.

What is the difference between memory foam and polyurethane foam in car seats?

Standard polyurethane foam rebounds quickly, tolerates heat well, and provides solid structural support. Memory foam (viscoelastic foam) conforms slowly to your body shape and reduces pressure points, but it retains heat and recovers too slowly to work well as a full structural seat core. Memory foam is best used as a supplemental layer for lumbar support or as a seat topper, not as a replacement for the main foam body.

What foam density is best for car seat replacement?

Use a minimum of 2.5 lb/ft3 (40 kg/m3) for standard everyday use. For high-use driver seats or heavier individuals, choose 3.0 lb/ft3 (48 kg/m3) or higher. Avoid anything below 1.5 lb/ft3, as it compresses and degrades very quickly under daily use.

Can I use furniture foam to replace car seat foam?

No. Household furniture foam does not carry the FMVSS 302 fire-retardant treatment required for vehicle interiors. It also degrades much faster under the heat, UV, and compression cycles inside a car. Always use automotive-grade foam that is certified for vehicle use.

How long does car seat foam last?

Most OEM car seat foam performs well for 8 to 12 years under normal daily use. Heat, UV exposure, humidity, and heavy use all speed up breakdown. Foam used in high-mileage commercial vehicles or very hot climates may fail sooner.

Is memory foam safe for use in automotive seats?

Consumer-grade memory foam is not safe for automotive use because it lacks the required FMVSS 302 fire-retardant treatment. Always use certified automotive-grade memory foam when adding memory foam layers to a vehicle seat. Suppliers like FoamTouch carry certified options.

What foam is used in child car seats?

Child car seat shells use Expanded Polystyrene (EPS) and/or Expanded Polypropylene (EPP) to absorb crash energy, plus a layer of polyurethane foam for seating comfort. The structural safety foam in child seats should never be replaced by a consumer. If the safety shell is damaged, replace the entire seat.

What is the IFD firmness test used for in the automotive industry?

IFD (Indentation Force Deflection) is a standardized test used to measure foam firmness. It follows protocols like ASTM D3574 in the US and JIS K-6400 in Japan. Equipment companies like TestResources build the testing machines that OEM seat manufacturers use to verify foam quality before it goes into production.
